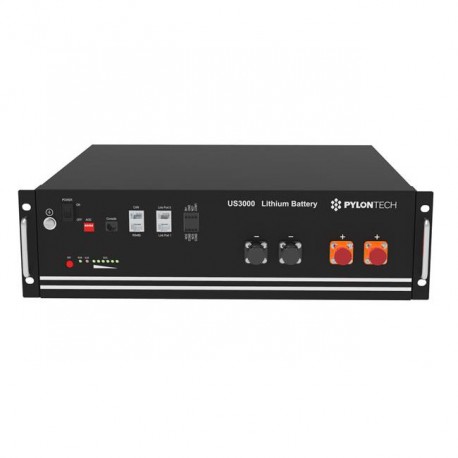

Pylon US3000 3.5kWh Lithium Li-Ion Battery ( excl. brackets )
95% Depth of Discharge (DoD).
Usable capacity 3374Wh.
Parallel capability of up to 16 units.
Intelligent BMS protecting battery cells.
6000 Cycles.
RS485 and CAN compatible.
Comes with 7-year standard warranty which is extendable to 10-years upon registration
The US3000C is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle. A self designed BMS protects the cell from abormal temperature, current, voltage, SoC and SoH.
The Pylontech US3000C has an incredible DoD of 95%.
You can now register the Pylon US3000C for an additional 3 years of manufacturer warranty for free. Go to Pylontech Warranty Registration and complete the information in the 'sign up battery' page.
Please check battery communication and settings, before connecting grid or PV. A charge voltage over 53.2V will damage the battery.
Please note US2000C and US3000C batteries require different pin out on the communication cable when used with the axpert inverters ( Kodak , Mecer etc). Standard cable used with US2000B and US3000 will not work. Please make sure the correct cable is being used.
Important
DIP switch has been deployed reversely. ON is down, OFF is UP. If DIP switches need to be 1000 then set it to 1110. MAX DISCHARGE AND CHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS. The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter. Please ensure that you have the correct BMS cable for the correct inverter.
Hubble Lithium's AM5 model is a low voltage (51V), 5.12kWh battery made up of superior prismatic lithium-ion (LFP) cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.
Battery Type: Lithium Ion
Nominal Energy: 5120 Wh
Depth of discharge: 100.00 %
Voltage: 48 V
Continuous Discharge Rate...
16.076kWh Rated Energy
200A Continuous Power
35 Units Stackable
3 ways to Install
Ultra safe LFP material
Short circuit protection
Flexible remote upgrade
Wi-Fi / Bluetooth available
8000 Cycles
Wide range inverter compatibility
Multi protection to avoid over discharge
Smart BMS management for longer lifespan
Heating system optional, quality...
Nominal Energy: 3.2kw
Voltage: 51 V
Capacity :60ah
1C battery capable of providing a continuous charge/discharge power of 3.2kW
Depth of Discharge: 95% DOD
Warranty : 5+5 years
Communication : CAN/RS485/WIFI/Bluetooth
Capable of paralleling up to 16
61.44kw Deye Battery Bank consisting of :
12 x Deye BOS G 5.12kWh High Voltage Lithium Batteries
1 x Deye High Voltage Control Box For BOS-G
1 x Deye Rack for 12 BOS G Batteries
Nominal Capacity: 100Ah per battery module.
Energy per Module: 5.12 kWh.
Total Capacity: Up to 61.44 kWh with 12 modules.
Depth of Discharge (DOD): 90% recommended....
Greenrich WM5000 wall mount lithium battery with a discharge of 150A (1.5C) Continous
Battery Type: Lithium Ion
Nominal Energy: 4950 Wh
Depth of discharge: 100.00 %
Voltage: 48 V
Continuous Discharge Rate (Normal Use): 150A
Mac Charge Current : 80A
Warranty 10 years ( 6000 cycles)
5kWh battery with a 90% DoD
Parallelable up to 15 Units
Stackable up to 6 Units (30kWh Total)
Wide range Inverter compatibility
10-Year Limited warranty
5U module design
Excluding Accessories ( no lugs, battery cables , communication cables etc)
61.44kw Sunsynk Battery Bank consisting of :
12 x Sunysnk 5.12kWh High Voltage Lithium Batteries
1 x Sunsyk High Voltage Control Box
1 x Sunsynk Rack for 12 Batteries
Pylon Lithium Battery US3000D Compatible with UP3000c and UP5000
3.5 kWh Li-Ion Solar Battery 48V
Nominal Energy: 4800watts (4.8 kw)
Voltage: 48 V
Depth of Discharge : 95%
Battery Type : Lithium Ion
