Pylon US3000 3.5kWh Lithium Li-Ion Battery ( excl. brackets )
95% Depth of Discharge (DoD).
Usable capacity 3374Wh.
Parallel capability of up to 16 units.
Intelligent BMS protecting battery cells.
6000 Cycles.
RS485 and CAN compatible.
Comes with 7-year standard warranty which is extendable to 10-years upon registration

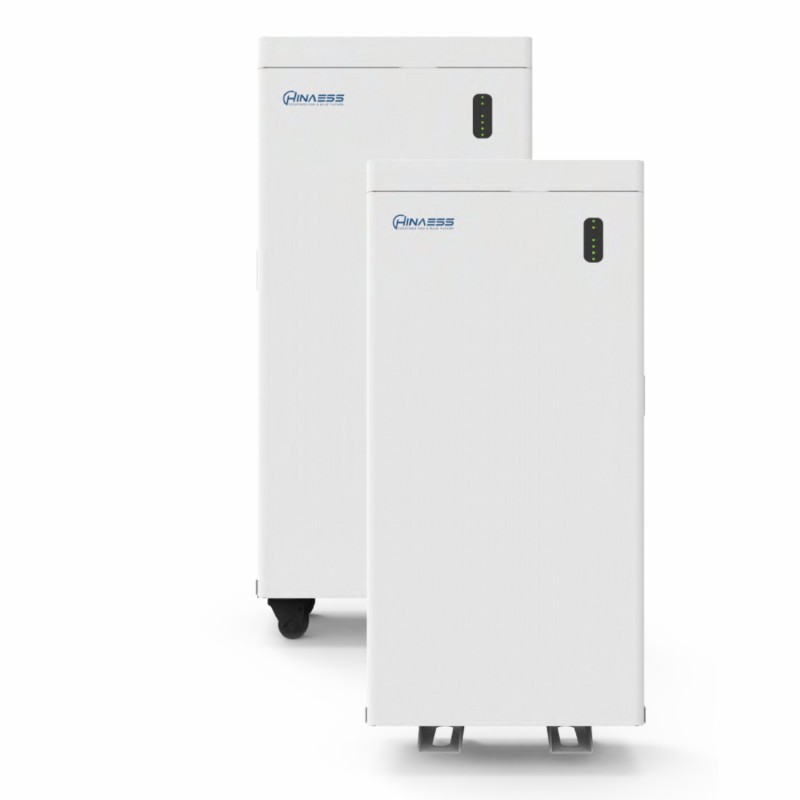

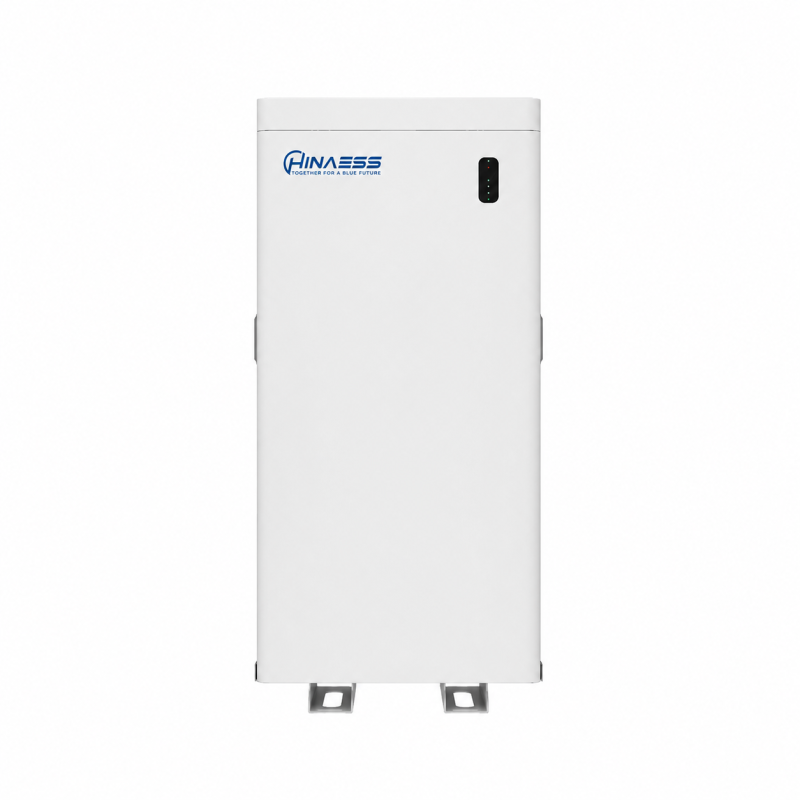

TheHINA ESS PowerGem Max 16kWhis a premium LFP battery module crafted for high reliability, long life, and versatile installation. Designed for both residential and commercial settings, it is ideal for applications demanding resilient backup power or solar energy storage.
Detailed Features
High Usable Capacity & Longevity:
Rated energy: 16.076 kWh with approximately 90% usable depth of discharge (DOD).
Withstands up to8,000 cycles, indicative of long-term reliability.
Flexible Mounting Options:
Designed for wall mounting, floor standing, or stacking—supports up to32 unitsfor scalable energy systems.
Integrated Fire Suppression:
Includes built-in fire suppression systems for enhanced safety and risk mitigation.
Smart Battery Management:
Features a Smart BMS with multi-tier protections including overcharge/discharge, short circuit, reverse connection, and low SOC safeguards. It also supports active cell balancing.
Remote Access & Monitoring:
Enables remote firmware upgrades and access via Wi-Fi or Bluetooth; includes tools like a handy free monitor for real-time system oversight.
Robust Build & Safety Certifications:
Constructed with ultra-safe LFP chemistry. Complies with CE, UN38.3, IEC 62619 standards, and includes a 10-year warranty.
High Power Performance:
Charge/discharge rating approx. 0.5C.
Max continuous currents: ~165 A charging, ~165 A discharging. Peak values (short duration): up to 200 A—helps support heavy loads or fast replenishment.
Technical Specifications
Cell Type: LFP
Rated Energy: 16.076kWh
Rated Capacity: 314Ah
Rated Voltage: 51.2V
Charge Voltage (Vdc): 57.2V
Battery Charge Current(A): 160(max continuous), 165 (start limit current to 10A, retest every 10 minutes), 180 (peak1 15S), 200 (peak2 500ms)
Battery Discharge Current(A): 200(max continuous), 205(start giving over-current alarm but not stop discharging), 210 (peak1 2minutes), 220 (peak2 500ms)
Parallel: Up to 35 units parallelable w/o extra device needed, slave battery drops offline or come back alive does not affect system running.
IP Level: IP20
Communication: CAN/RS485
Robust Applications: Auto-addressing and stronger protection
Greenrich WM5000 wall mount lithium battery with a discharge of 150A (1.5C) Continous
Battery Type: Lithium Ion
Nominal Energy: 4950 Wh
Depth of discharge: 100.00 %
Voltage: 48 V
Continuous Discharge Rate (Normal Use): 150A
Mac Charge Current : 80A
Warranty 10 years ( 6000 cycles)
Hubble AM2 5.5KW Battery is a 1c Battery capable of proving a continuous charge and discharge power of 5.5kw
Battery Type: Lithium Ion
Nominal Energy: 5520 Wh
Depth of discharge: 100.00 %
Voltage: 48 V
Continuous Discharge Rate (Normal Use): 5500 W
Maximum Discharge Rate (5 Minutes): 5500 W
Surge Discharge Rate (15 Seconds): 6000 W
Maximum...
61.44kw Sunsynk Battery Bank consisting of :
12 x Sunysnk 5.12kWh High Voltage Lithium Batteries
1 x Sunsyk High Voltage Control Box
1 x Sunsynk Rack for 12 Batteries
61.44kw Deye Battery Bank consisting of :
12 x Deye BOS G 5.12kWh High Voltage Lithium Batteries
1 x Deye High Voltage Control Box For BOS-G
1 x Deye Rack for 12 BOS G Batteries
Nominal Capacity: 100Ah per battery module.
Energy per Module: 5.12 kWh.
Total Capacity: Up to 61.44 kWh with 12 modules.
Depth of Discharge (DOD): 90% recommended....
Hubble Lithium's AM5 model is a low voltage (51V), 5.12kWh battery made up of superior prismatic lithium-ion (LFP) cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.
Battery Type: Lithium Ion
Nominal Energy: 5120 Wh
Depth of discharge: 100.00 %
Voltage: 48 V
Continuous Discharge Rate...
Pylon Lithium Battery US3000D Compatible with UP3000c and UP5000
3.5 kWh Li-Ion Solar Battery 48V
Nominal Energy: 4800watts (4.8 kw)
Voltage: 48 V
Depth of Discharge : 95%
Battery Type : Lithium Ion
Pylon US3000 3.5kWh Lithium Li-Ion Battery ( excl. brackets )
95% Depth of Discharge (DoD).
Usable capacity 3374Wh.
Parallel capability of up to 16 units.
Intelligent BMS protecting battery cells.
6000 Cycles.
RS485 and CAN compatible.
Comes with 7-year standard warranty which is extendable to 10-years upon registration
